Optical Flow Estimation

Easy:

Imagine you’re playing a video game where you control a character who can move around in a world made of blocks. Now, imagine that instead of pressing buttons on your controller to make your character move, you could just think about moving, and your character would automatically do it without you touching anything. That’s kind of what optical flow estimation does, but for videos!

In a video, each frame is like a picture showing what’s happening at a specific moment. When we watch a video, our eyes see these frames one after another really quickly, so it looks like everything is moving. But actually, every single frame is just a still image.

Optical flow estimation helps computers understand how things are moving from one frame to the next. It’s like teaching the computer to “see” the movement between pictures in a video. This is super useful because it allows computers to analyze videos in ways they never could before, like understanding gestures, tracking objects, or even predicting movements in sports games.

So, if you were watching a video of a soccer game, optical flow estimation could help the computer figure out which way the ball is going to roll next based on how it’s moving now. It’s like giving the computer superpowers to understand motion in videos, just by looking at how things change from one frame to the next.

Moderate:

Optical Flow Estimation is a technique used in computer vision and deep learning to determine the motion of objects between consecutive frames in a video. It involves calculating the vector field, which represents the apparent motion of brightness patterns between two images or frames. Here’s a more detailed explanation:

Key Concepts:

1. Optical Flow:
   - Optical flow is a vector field where each vector represents the movement of pixels from one frame to the next.
   - It captures the direction and speed of motion for every pixel in an image sequence.

2. Applications:
   - Motion detection: Identifying and tracking moving objects in a video.
   - Video compression: Reducing data by predicting future frames based on motion.
   - Stabilization: Smoothing out shaky video footage.
   - Augmented Reality (AR): Ensuring virtual objects stay correctly positioned within a live camera feed.
   - Autonomous vehicles: Helping cars understand the movement of objects around them.

How Optical Flow Estimation Works:

1. Frame Comparison:
   - The algorithm compares two consecutive frames from a video sequence.
   - It analyzes how pixels in the first frame move to their new positions in the second frame.

2. Assumptions:
   - Brightness constancy: The brightness of a pixel remains constant between frames.
   - Small motion: Objects move slightly between frames, allowing the use of local motion estimation.

3. Methods:
   Lucas-Kanade Method:
   - Assumes small movements and uses local neighborhoods to calculate flow.
   - Solves a set of linear equations to estimate the flow vectors.
   Horn-Schunck Method:
   - Global approach that enforces smoothness across the entire image.
   - Uses a variational method to minimize an energy function combining motion and smoothness constraints.

Deep Learning for Optical Flow Estimation:

Recent advancements leverage deep learning to improve the accuracy and robustness of optical flow estimation:

1. Convolutional Neural Networks (CNNs):
   - CNNs are trained on large datasets to learn features that represent motion between frames.
   - They can handle complex motions and varying lighting conditions better than traditional methods.

2. FlowNet:
   - A pioneering deep learning architecture designed specifically for optical flow estimation.
   - Consists of an encoder-decoder structure that processes two input frames to predict the flow.

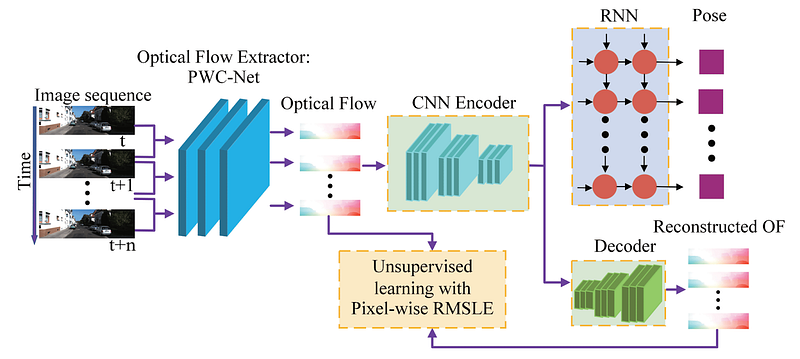

3. PWC-Net:
   - Another advanced network that uses a pyramid, warping, and cost volume approach.
   - It builds a pyramid of images at multiple scales to handle large displacements more effectively.

Summary:

Optical Flow Estimation in deep learning enables precise and efficient motion tracking by analyzing the movement of pixels across video frames. It plays a crucial role in various applications like video processing, augmented reality, and autonomous systems, making it a fundamental technique in modern computer vision.

Hard:

Optical flow estimation is a technique used in computer vision to track the movement of objects in videos or images. It involves estimating the apparent motion of brightness patterns in consecutive frames.

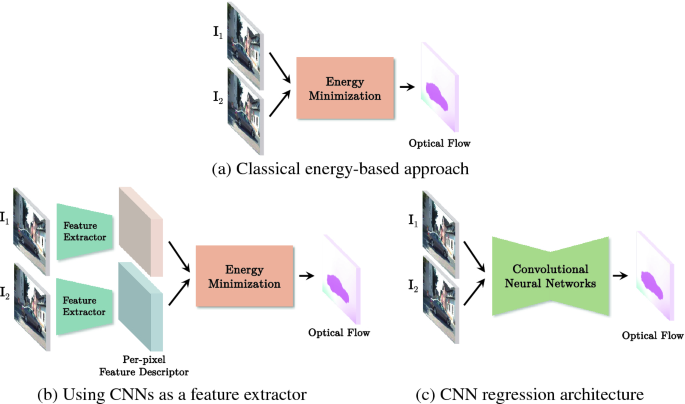

Classical algorithms like Lucas-Kanade and Horn-Schunck used techniques such as regularization, coarse-to-fine processing, and descriptor matching to address challenges like the aperture problem, large displacements, and occlusions. However, recent deep learning approaches have significantly improved optical flow estimation.

Deep learning methods like FlowNet, DeepFlow, and EpicFlow use convolutional neural networks (CNNs) to directly learn optical flow, achieving state-of-the-art performance on benchmarks[1][2]. These approaches combine descriptor matching, variational optimization, and other techniques to estimate motion vectors for each pixel.

Some key deep learning architectures for optical flow include:

• FlowNetS: Concatenates two consecutive frames as input and uses an encoder-decoder structure similar to U-Net to predict optical flow.

• FlowNetCorr: Adds a correlation layer to FlowNetS to explicitly model pixel matching between frames.

• RAFT: The current state-of-the-art method, which uses a recurrent architecture to iteratively update and refine the flow field.

Deep learning has enabled significant advances in optical flow estimation, with CNN-based methods now outperforming classical approaches on standard benchmarks. Optical flow estimation is an important component for many computer vision applications like video analysis, robotics, and medical imaging.
