Nearest Neighbor Interpolation

Easy:

Nearest-neighbor interpolation is like a simple way of guessing what a new color should be by looking at the colors of the closest pixels. Imagine you have a small picture and you want to make it bigger. Nearest-neighbor interpolation helps decide what color each new pixel should be by copying the color of the nearest pixel from the original picture. It’s like if you have a small dot and you want to make it bigger, you just copy the color of the closest dot to make it larger. This method is quick and easy, but sometimes the enlarged picture may look a bit blocky or pixelated.

Another easy example:

Imagine you’re playing a game where you have to guess the color of a new square in a grid based on the colors of the squares around it. The new square is right in the middle of the grid, and you can’t see it directly. You can only see the colors of the squares that are next to it.

Here’s how you can guess the color of the new square using the Nearest Neighbor Interpolation method:

1. Look at the Squares Around: First, you look at the colors of the squares that are right next to the new square. These are your “neighbors.”

2. Find the Most Common Color: Then, you look at all the neighboring squares and find out which color is the most common among them. This is the color you think the new square is most likely to be.

3. Guess the New Square’s Color: Finally, you guess that the new square is the same color as the most common color among its neighbors.

This method is like asking your friends who are playing the game with you to help you guess the color of the new square. You’re not looking at the square itself, but you’re using the colors of the squares around it to make an educated guess.

Moderate:

Nearest neighbor interpolation is a simple method used in computer graphics and image processing to resize or resample an image. When an image needs to be enlarged or shrunk, pixels need to be added or removed, respectively. Nearest neighbor interpolation is one way to accomplish this.

Here’s how it works:

1. Original Image: Let’s say you have an image that you want to resize. For simplicity, let’s imagine it’s a 2x2 pixel image:

[ A | B ]

[ C | D ]

2. Target Size: Suppose you want to enlarge this image to a 4x4 pixel size.

3. Mapping: Nearest neighbor interpolation works by mapping each pixel in the original image to its nearest neighbor in the target image.

4. New Pixel Values: Each pixel in the original image is duplicated to fill the new space. The value of the duplicated pixel is the value of its nearest neighbor in the original image.

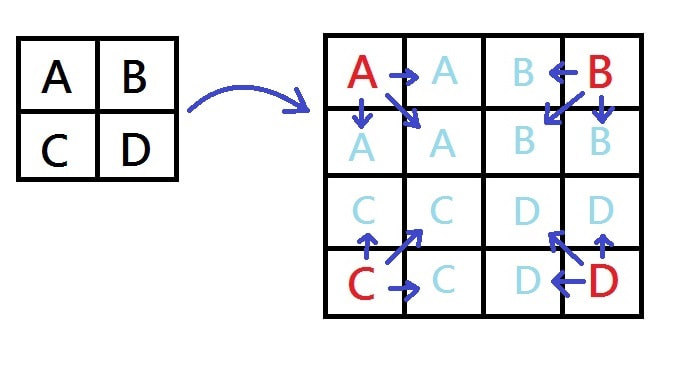

Using nearest neighbor interpolation, if you want to enlarge the 2x2 image to a 4x4 image, it would look like this:

[ A | A | B | B ]

[ A | A | B | B ]

[ C | C | D | D ]

[ C | C | D | D ]

Here, each pixel from the original image is copied to the corresponding locations in the larger image. For example, pixel A is duplicated to fill the top-left quadrant of the larger image, pixel B to the top-right, pixel C to the bottom-left, and pixel D to the bottom-right.

The key characteristic of nearest neighbor interpolation is that it simply replicates the nearest pixel value when enlarging or reduces it when shrinking the image. This method is fast and easy to implement but may lead to a loss of image quality, especially when enlarging images significantly, as it can produce blocky or jagged edges. Therefore, it’s often not preferred for high-quality image resizing. However, it can be useful in certain situations where speed is more important than image quality.

Hard:

Nearest neighbor interpolation is a technique used to estimate the value of a function at a new, unknown point by looking at the values of the function at surrounding, known points. It’s essentially a way of filling in the gaps between existing data points. Here’s how it works:

1. Data Points: Imagine you have a set of data points, like temperature measurements at different locations on a map. These are your known points.

2. New Point: You want to estimate the temperature at a location that wasn’t measured, somewhere between existing points. This is your new, unknown point.

3. Nearest Neighbor Search: The nearest neighbor method finds the existing data point that’s closest to your new point. This “neighbor” is usually determined by calculating the distance between them.

4. Value Assignment: The value of the function at the new point is simply assigned the same value as its nearest neighbor. In simpler terms, the temperature at the new location is estimated to be the same as the closest measured temperature.

Visualizing Nearest Neighbor Interpolation:

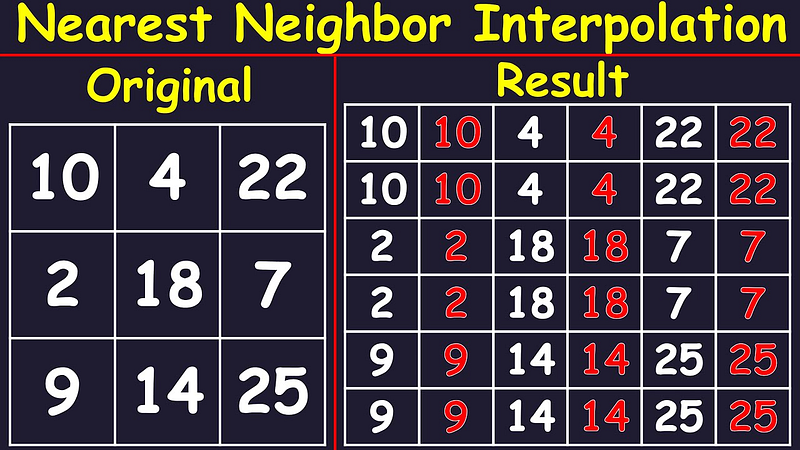

Think of a colored grid representing an image. To enlarge the image, nearest neighbor interpolation would find the closest existing pixel (color) for each new pixel in the larger grid. The new image would look blocky because entire color values are copied, not blended.

Advantages:

• Simplicity: Nearest neighbor interpolation is very easy to understand and implement. It’s computationally cheap, making it ideal for real-time applications.

Disadvantages:

• Staircase Effect: The blocky appearance mentioned earlier can create a staircase effect, especially for diagonal lines or smooth curves.

• Loss of Information: Since it only considers the closest neighbor, it ignores potentially valuable data from other nearby points.

Applications:

• Nearest neighbor interpolation is often used in computer graphics and image processing for tasks like resizing images or filling in missing data points.

• It’s also used in real-time applications where speed is a priority, such as 3D texture mapping.

Overall, nearest neighbor interpolation is a fast and straightforward method, but it can be less accurate for smooth functions compared to other interpolation techniques.
