Flow Warping

Author

Abhishek Kumar Pandey
June 04, 2024

Flow Warping

Easy:

Imagine you have a flipbook. Each page of the flipbook shows a picture that is slightly different from the one before it, so when you flip through the pages quickly, it looks like the pictures are moving, like a cartoon.

Now, let’s say you want to change one of the pictures in the middle of the flipbook to make it look smoother or more like the other pictures. You need to figure out how things in the picture are moving from one page to the next. Maybe a ball is rolling, or a person is walking.

Flow Warping is like using a special tool that helps you see how each part of the picture is moving. Once you know how everything is moving, you can change or adjust the picture in a smart way to make it look just right when you flip through the pages.

In deep learning, computers use a similar trick to understand and adjust moving pictures (like videos). They figure out the “flow” of how things move from one frame (picture) to the next and use that information to make changes that look natural and smooth. It’s like magic for making animations and videos look better!

Tools

Moderate:

Flow Warping in deep learning refers to a technique used to align or transform images based on the estimated motion between them. This concept is particularly useful in applications like video processing, optical flow estimation, and image synthesis. Here’s a more detailed explanation:

Understanding Flow Warping

  1. Optical Flow:
    - Optical flow is a method for estimating the motion of objects between two consecutive frames in a video. It calculates the displacement of pixels from one frame to the next.
    - The result is a flow field, which is a map of vectors indicating the direction and magnitude of movement for each pixel.

  2. Warping:
    - Warping involves transforming an image based on certain parameters. In the context of flow warping, these parameters are the vectors from the optical flow.
    - Essentially, warping uses the flow field to move or “warp” pixels from one image to another, aligning them according to the estimated motion.

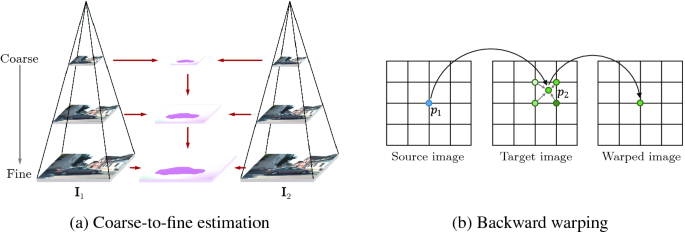

How Flow Warping Works

  1. Estimate Optical Flow:
    - First, the optical flow between two images or video frames is estimated. This flow captures how each pixel in the first image moves to its corresponding position in the second image.

  2. Apply Warping:
    - Using the optical flow vectors, the first image is warped to match the second image. Each pixel in the first image is shifted according to the flow field, effectively predicting where that pixel will be in the next frame.

Applications of Flow Warping

  1. Video Frame Interpolation:
    - Flow warping can be used to generate intermediate frames between two video frames, creating a smooth transition and higher frame rates.

  2. Image Synthesis:
    - It helps in creating new images that are consistent with the motion dynamics observed in a sequence, useful in tasks like generating future frames in a video.

  3. Motion Compensation:
    - In video compression and enhancement, flow warping compensates for motion to improve the quality and reduce the size of video files.

Example in Deep Learning

In deep learning, neural networks might use flow warping to refine their predictions:

  1. Training:
    - A network might be trained to predict optical flow between frames. During training, the network learns to minimize the difference between the warped image (based on predicted flow) and the actual subsequent frame.

  2. Inference:
    - Once trained, the network can predict the motion between new frames and use flow warping to generate realistic intermediate frames or stabilize video sequences.

Flow warping, therefore, is a powerful tool in deep learning for handling tasks involving motion and temporal consistency, enhancing the quality and realism of video and image processing applications.

Hard:

Flow warping is a technique used in deep learning to estimate the movement between two images. It is a crucial component in various computer vision tasks, such as optical flow estimation, frame interpolation, and face frontalization.

Overview

Flow warping involves estimating the movement between two images by computing the correlation between the features of the two images. This correlation is used to generate a warp field, which is then applied to the content image to align it with the target image. The warp field is a set of pixel-wise transformations that describe how to move each pixel in the content image to match the target image.

Applications

Flow warping has several applications in computer vision:

  1. Optical Flow Estimation: Flow warping is used to estimate the movement between two consecutive frames in a video sequence. This helps in tasks like action recognition, autonomous driving, and video editing.

  2. Frame Interpolation: By warping the frames between two given frames, flow warping can generate intermediate frames, effectively interpolating the video sequence.

  3. Face Frontalization: In face frontalization, flow warping is used to align the profile face with the frontal face, ensuring that the facial details are preserved while the illumination conditions are maintained.

Key Components

The key components of flow warping include:

  1. Correlation Volume: This is a 4D volume that stores the correlation between the features of the two images.

  2. Warp Field: The warp field is generated by computing the correlation volume and is used to transform the content image to match the target image.

  3. Warping Operation: The warp field is applied to the content image using a warping operation, which moves each pixel to its corresponding position in the target image.

Advantages

Flow warping offers several advantages:

  1. Efficiency: Flow warping can be computed efficiently using deep neural networks, making it suitable for real-time applications.

  2. Accuracy: Flow warping can accurately estimate the movement between images, even in cases of large displacements and appearance changes.

  3. Flexibility: Flow warping can be applied to various computer vision tasks, including optical flow estimation, frame interpolation, and face frontalization.

Challenges

Flow warping also faces some challenges:

  1. Computational Complexity: Estimating the warp field can be computationally expensive, especially for large images.

  2. Local Minima: The optimization process can get stuck in local minima, leading to suboptimal results.

  3. Illumination Changes: Flow warping can struggle with illumination changes between the two images, which can affect the accuracy of the warp field.

Overall, flow warping is a powerful technique in deep learning that has numerous applications in computer vision. Its efficiency, accuracy, and flexibility make it a valuable tool for various tasks, but it also requires careful consideration of the challenges involved.
