Feature Pyramid Network(FPN)

Author

Abhishek Kumar Pandey
June 02, 2024

Feature Pyramid Network(FPN)

Easy:

Imagine you’re on a treasure hunt, and you have a map that shows you where the treasure might be. The map has different levels of detail, like a big picture of the whole island, a smaller picture of a specific beach, and an even smaller picture of a single palm tree.

A Feature Pyramid Network (FPN) is like a super-smart map reader that helps computers find objects in pictures. It’s called a “pyramid” because it looks at the picture at different levels of detail, just like our treasure map.

Here’s how it works:

  1. Big picture: The computer looks at the whole picture, like the map of the whole island. It sees the big features, like the shape of the island, the ocean, and the sky.

  2. Smaller picture: The computer zooms in a bit, like looking at the map of a specific beach. It sees more details, like the palm trees, the sand, and the waves.

  3. Even smaller picture: The computer zooms in even more, like looking at a single palm tree. It sees the tiny details, like the leaves, the trunk, and the shadows.

The FPN combines all these different levels of detail into one super-powerful map. This helps the computer find objects in the picture more accurately, like finding the treasure on the map!

For example, if the computer is trying to find a cat in a picture, the FPN would look at the big picture to find the cat’s body, then zoom in to find the head, ears, and whiskers. It’s like using a magnifying glass to examine the picture more closely.

By combining all these levels of detail, the FPN makes the computer’s “map” of the picture much more accurate and powerful. It’s a really cool way that computers can understand pictures and find objects in them!

Map of the picture

Moderate:

A Feature Pyramid Network (FPN) is a type of neural network architecture used primarily in computer vision tasks, such as object detection and segmentation. It is designed to help the network better detect objects at different scales (sizes) within an image. Here’s a detailed explanation:

Why FPN is Needed

When dealing with images, objects can appear in various sizes. For instance, a cat can be small in one image and large in another. Traditional neural networks might struggle to detect objects that vary greatly in size because they usually focus on a single scale. FPN addresses this issue by constructing a multi-scale feature pyramid, allowing the network to handle objects of different sizes more effectively.

How FPN Works

  1. Backbone Network:
    The process starts with a backbone network (like ResNet) which extracts features from the input image at different levels. These levels represent different scales, from high-resolution (fine details) to low-resolution (coarse details).

  2. Top-Down Pathway:
    FPN introduces a top-down pathway where features from higher levels (coarse, low-resolution) are upsampled (increased in resolution). This is done using a technique called “upsampling,” which essentially enlarges the feature maps.

  3. Lateral Connections:
    At each level, the upsampled features are combined with features from the corresponding level of the backbone network using lateral connections. This combination is done via element-wise addition, which helps in merging both high-level and fine details.

  4. Output Pyramid:
    The result is a pyramid of feature maps that represent the image at multiple scales. Each level in this pyramid contains rich information from both high-resolution and low-resolution features, making it easier for the network to detect objects of varying sizes.

Benefits of FPN

  • Better Detection of Small Objects: By incorporating high-resolution features, FPN can better detect small objects that might be missed by traditional methods.

  • Improved Multi-Scale Detection: The combination of different scales helps in accurately detecting objects of various sizes within the same image.

  • Efficiency: FPN reuses the feature maps from the backbone network, making it computationally efficient.

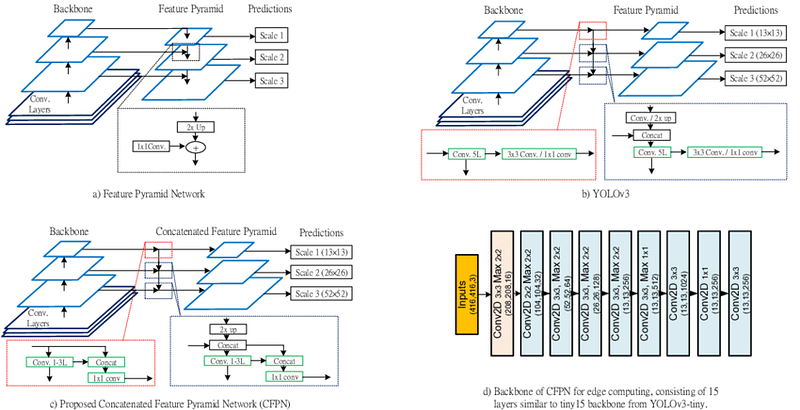

Visual Representation

Imagine an image passing through several stages in the backbone network, each producing a feature map at a different scale:

  • Stage 1: High resolution, small receptive field (fine details)

  • Stage 2: Lower resolution, larger receptive field

  • Stage 3: Even lower resolution, even larger receptive field

  • Stage 4: Lowest resolution, largest receptive field (coarse details)

FPN combines these stages in a top-down manner, merging fine details from earlier stages with coarse details from later stages, resulting in a multi-scale feature representation.

Applications

FPN is widely used in state-of-the-art object detection models like Faster R-CNN, RetinaNet, and Mask R-CNN. It significantly enhances their ability to detect and segment objects accurately across a wide range of scales.

In summary, a Feature Pyramid Network improves the ability of neural networks to detect objects of different sizes by constructing a multi-scale feature representation. This makes it an essential component in modern computer vision systems.

Hard:

The Feature Pyramid Network (FPN) is a neural network architecture that enhances the feature extraction capabilities of deep neural networks, particularly in the context of object detection tasks. It was introduced in the paper “Feature Pyramid Networks for Object Detection” by Lin et al. in 2017.

Motivation

Traditional object detection architectures, such as Faster R-CNN, use a single feature map to detect objects at multiple scales. However, this approach has some limitations:

  1. Scale invariance: Objects can appear at various scales in an image, and a single feature map may not be able to capture features at all scales effectively.

  2. Feature resolution: As feature maps are downsampled, the spatial resolution decreases, making it difficult to detect small objects or objects with fine details.

Architecture

The FPN architecture addresses these limitations by creating a feature pyramid that combines features from different scales and resolutions. The feature pyramid consists of multiple levels, each with a different spatial resolution and receptive field size.

The FPN architecture can be divided into three main components:

  1. Backbone network: A convolutional neural network (CNN) that extracts features from the input image. The backbone network is typically a pre-trained model, such as ResNet or VGG.

  2. Feature pyramid: A set of feature maps with different spatial resolutions and receptive field sizes. The feature pyramid is constructed by combining the output features from the backbone network at different scales.

  3. Detection head: A neural network that takes the feature pyramid as input and outputs the final object detection results.

Feature Pyramid Construction

The feature pyramid is constructed by combining features from different scales using a top-down and lateral connection approach:

  1. Top-down pathway: The output features from the backbone network are downsampled and concatenated with the corresponding features from the previous scale.

  2. Lateral connections: The output features from the top-down pathway are concatenated with the features from the corresponding scale in the backbone network.

The resulting feature pyramid consists of multiple levels, each with a different spatial resolution and receptive field size. The feature pyramid is then fed into the detection head to produce the final object detection results.

Advantages

The FPN architecture offers several advantages over traditional object detection architectures:

  1. Improved scale invariance: The feature pyramid captures features at multiple scales, enabling the detection of objects at various scales.

  2. Enhanced feature resolution: The feature pyramid combines features from different resolutions, allowing for the detection of small objects or objects with fine details.

  3. Improved detection accuracy: The FPN architecture has been shown to improve object detection accuracy on various benchmarks.

Applications

The FPN architecture has been widely adopted in various computer vision applications, including:

  1. Object detection: FPN has been used in popular object detection architectures, such as RetinaNet, Mask R-CNN, and Cascade R-CNN.

  2. Instance segmentation: FPN has been used in instance segmentation tasks, such as Mask R-CNN and Panoptic FPN.

  3. Image segmentation: FPN has been used in image segmentation tasks, such as semantic segmentation and scene understanding.

In summary, the Feature Pyramid Network (FPN) is a powerful neural network architecture that enhances feature extraction capabilities for object detection tasks. Its ability to capture features at multiple scales and resolutions has led to significant improvements in object detection accuracy.
