Feature Fusion Block

Author

Abhishek Kumar Pandey
April 18, 2024

Feature Fusion Block

Easy

Imagine you have different types of Lego blocks, each with its own special design. The Feature Fusion Block is like a special Lego piece that lets you combine these different types of Lego blocks together in a cool way. So, if one Lego block has wheels and another has wings, you can use the Feature Fusion Block to put them together to make a flying car! In computer stuff, it’s like combining different parts of a picture or a video to make something new and awesome.

Another Easy Example

Imagine you’re playing a game where you have to find hidden treasures. You have two different maps, but each map only shows part of the treasure’s location. One map shows where the treasure is buried, and the other map shows where the treasure is hidden.

Now, you have a special tool called a “Feature Fusion Block.” This tool can take the information from both maps and combine it into one map that shows you exactly where the treasure is buried and where it’s hidden. It’s like having a super map that knows everything!

So, in the world of computers and games, a Feature Fusion Block is like that special tool. It takes information from two different sources (like our two maps) and combines it to give us a better understanding or a complete picture. This is really useful because it helps us solve problems or find things more easily.

Moderate

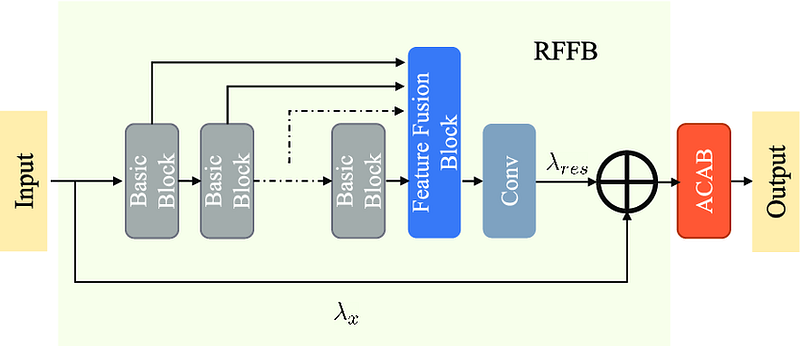

A Feature Fusion Block is a type of building block used in deep learning models, particularly in convolutional neural networks (CNNs), to combine features from different layers of the network. The main idea behind feature fusion is to extract and combine useful information from different levels of abstraction in the network.

A Feature Fusion Block typically consists of several convolutional layers, followed by an element-wise sum or concatenation operation to merge the features from different layers. This allows the network to learn more complex and abstract representations of the input data by combining low-level features (such as edges and textures) with high-level features (such as shapes and objects).

Here is an example of a Feature Fusion Block:

  1. The input to the Feature Fusion Block is typically a tensor of shape (batch\_size, height, width, channels), where batch\_size is the number of samples in the batch, height and width are the spatial dimensions of the input image, and channels is the number of color channels (e.g., 3 for RGB images).

  2. The input tensor is passed through several convolutional layers with different kernel sizes and strides. These layers extract features at different scales and spatial resolutions.

  3. The output tensors from each convolutional layer are then concatenated or summed together along the channel dimension. This creates a new tensor that contains the combined features from all the convolutional layers.

  4. The resulting tensor is passed through one or more additional convolutional layers to refine and combine the features further.

  5. Finally, the output of the Feature Fusion Block is typically passed through a non-linear activation function, such as ReLU or sigmoid, to introduce non-linearity into the network.

Overall, Feature Fusion Blocks are an important component of many deep learning models, as they enable the network to learn more complex and abstract representations of the input data by combining features from different layers of the network.

Hard

A Feature Fusion Block is a concept used in deep learning, particularly in the field of computer vision, to combine features from different sources or layers of a neural network. The idea behind feature fusion is to enhance the model’s ability to capture and utilize information from various parts of the input data, which can lead to improved performance in tasks such as image recognition, object detection, and semantic segmentation.

How Feature Fusion Works

  1. Multiple Feature Sources: In a typical deep learning model, especially in convolutional neural networks (CNNs), different layers capture different levels of abstraction of the input data. For example, early layers might capture low-level features like edges and textures, while deeper layers capture more complex, high-level features like shapes and objects.

  2. Combining Features: The Feature Fusion Block aims to combine these features from different layers or sources in a way that leverages the strengths of each. This can be done through various methods, such as concatenation, addition, or more complex operations like gating mechanisms.

  3. Enhanced Representation: By fusing features from different sources, the model can create a more comprehensive and rich representation of the input data. This can help the model to better understand and classify the data, leading to improved performance.

Examples of Feature Fusion Techniques

Concatenation: This is the simplest form of feature fusion, where the features from different layers are simply concatenated together. This can be done along the channel dimension (for 2D convolutional layers) or along the spatial dimensions (for 3D convolutional layers).

Addition: Another straightforward method is to add the features from different layers together. This can help to emphasize the most important features and reduce redundancy.

Gating Mechanisms: More complex fusion methods can involve gating mechanisms, where the model learns to weigh the importance of features from different layers. This can be particularly useful when some layers capture more relevant information for the task at hand.

Implementation Example

Here’s a simple example of how you might implement a feature fusion block in PyTorch, using concatenation as the fusion method:

```python

import torch

import torch.nn as nn

class FeatureFusionBlock(nn.Module):

def init(self, in_channels):

super(FeatureFusionBlock, self).__init__()

self.conv = nn.Conv2d(in_channels, in_channels, kernel_size=1)

def forward(self, x1, x2):

# Assuming x1 and x2 are the features from two different layers

# Concatenate the features along the channel dimension

x = torch.cat((x1, x2), dim=1)

# Apply a 1x1 convolution to reduce the number of channels

x = self.conv(x)

return x

# Example usage

fusion_block = FeatureFusionBlock(in_channels=64)

x1 = torch.randn(1, 64, 32, 32) # Example feature map from layer 1

x2 = torch.randn(1, 64, 32, 32) # Example feature map from layer 2

fused_features = fusion_block(x1, x2)

```

This example demonstrates a basic feature fusion block that concatenates features from two layers and applies a 1x1 convolution to reduce the number of channels. The actual implementation can vary significantly depending on the specific requirements of the task and the architecture of the neural network.
